Demystifying SDN and NFV

Software-Defined Networking (SDN) At its core, SDN is a networking architecture that decouples the control plane from the data plane, enabling centralized control, programmability, and automation of network resources. In simpler terms, it allows network administrators to manage network services through abstraction of lower-level functionality.

Network Function Virtualization (NFV) NFV, on the other hand, focuses on virtualizing network services traditionally carried out by dedicated hardware appliances. It involves replacing specialized hardware with software-based virtual network functions (VNFs) running on standard servers and switches. This agility and flexibility are fundamental to NFV’s appeal.

The Power of SDN

1. Centralized Control SDN shifts control from individual network devices to a central controller, allowing for dynamic, policy-driven management. This centralized approach simplifies network configuration and troubleshooting.

2. Flexibility and Programmability With SDN, network policies can be programmed and adjusted on the fly, enabling rapid responses to changing network conditions. This flexibility is especially valuable in cloud computing environments.

3. Traffic Engineering SDN enables intelligent traffic engineering and optimization, ensuring that network resources are efficiently utilized, and critical applications receive the necessary bandwidth.

4. Security SDN enhances security by facilitating fine-grained control over network traffic. Security policies can be implemented and enforced at the network level, reducing vulnerabilities.

The Advantages of NFV

1. Cost-Efficiency NFV reduces the need for expensive, proprietary hardware, resulting in significant cost savings for organizations. It also allows for better resource utilization, as virtualized network functions can run on the same hardware.

2. Scalability NFV makes it easier to scale network functions up or down based on demand. This agility is vital for handling fluctuating workloads.

3. Rapid Deployment VNFs can be provisioned and deployed rapidly, reducing the time it takes to introduce new network services or make changes to existing ones.

4. Improved Service Innovation NFV promotes service innovation by simplifying the introduction of new network services and features without requiring hardware changes.

The Journey Toward Network Transformation

Embracing SDN and NFV isn’t just a technological shift; it’s a paradigm shift in how we think about network infrastructure. It’s a journey toward greater flexibility, efficiency, and innovation.

Challenges and Considerations

1. Integration Integrating SDN and NFV into existing network infrastructures can be complex. Organizations need a clear migration strategy.

2. Security As with any technology, security remains a top concern. Properly securing the SDN and NFV environment is crucial.

3. Skillset Organizations may need to invest in training and development to ensure their IT teams are well-versed in SDN and NFV technologies.

Conclusion: Pioneering a New Era in Networking

Software-Defined Networking (SDN) and Network Function Virtualization (NFV) represent a seismic shift in the networking landscape. They empower organizations to create more agile, efficient, and responsive networks that can adapt to the demands of today’s digital world.

As businesses continue to embrace digital transformation, SDN and NFV are not just technologies but strategic enablers that can propel organizations into the future. With the right strategy and a commitment to innovation, businesses can harness the full potential of SDN and NFV to drive their success in the digital age.

Follow link to learn more on SDNs.

What Exactly Is a Collapsed Core Architecture?

In a conventional three-tier network model, the campus network is structured into three distinct layers, each serving a specific function. The core layer plays a pivotal role in inter-site transport and routing, handling critical server and internet connections. The distribution layer manages the connectivity between the core and access layers, while the access layer grants network access to end users, including devices such as PCs and tablets.

While this three-tier model is indispensable for intricate campuses with diverse needs, it’s worth exploring more streamlined options, especially for smaller or medium-sized campus networks. This is where the “Collapsed Core Architecture” comes into play. In this model, the core and distribution layers are merged into a single entity, simplifying the network design and management process.

Benefits of Collapsed Core Networks

The Collapsed Core Network operates in a manner similar to its three-tier counterpart, but it offers unique advantages tailored to the needs of smaller campuses:

1. Lower CostsBy amalgamating the core and distribution layers, a collapsed core network significantly reduces the hardware requirements, resulting in cost savings. This model provides an opportunity to harness the benefits of the three-tiered architecture without breaking the budget.

2. Simplified Network ProtocolsWith only two layers involved in communication, the network’s protocol complexity is reduced, minimizing potential protocol-related issues.

3. Designed for Small CampusesThe collapsed core model is purpose-built for small and medium-sized campuses, ensuring that they can enjoy the advantages of a three-tiered model without the burden of unnecessary equipment or complexity.

Limitations of Collapsed Core Networks

While collapsed core networks offer compelling benefits, they do come with certain limitations, which are essential to consider:

1. ScalabilityCollapsed core networks have limited scalability, making it challenging to accommodate rapid growth in terms of additional sites, devices, and users. Cisco suggests that a small network supports up to 200 devices, while a medium network caters to up to 1000. Beyond this scope, transitioning to a three-tier model may become necessary.

2. ResiliencyThe streamlined design of collapsed core networks means there is less redundancy to mitigate individual component failures. While the network remains reliable, the reduced redundancy does entail some trade-offs in terms of resiliency.

3. ManageabilityThe lower redundancy can complicate the management process, especially when dealing with faulty components or distribution policy adjustments. Careful consideration and planning are required to minimize network downtime during such scenarios.

Is a Collapsed Core Design Right for You?

For small and medium-sized campuses seeking the robustness of a three-tiered network architecture without the associated budget constraints and technical complexities, a collapsed core network can be an ideal solution. However, campuses with rapid growth expectations should be prepared to transition to the full three-tiered design when necessary, as scalability, resiliency, and manageability are considerations that can’t be ignored.

In conclusion, the choice of network architecture ultimately depends on your specific needs, resources, and growth expectations. A collapsed core network offers an efficient compromise between complexity and cost-effectiveness, making it a viable option for many smaller enterprises in their pursuit of a resilient and scalable network infrastructure.

Some useful links to Cisco’s resources on the subject of network architecture and design, specifically focusing on the Collapsed Core Network and related concepts:

1. Cisco Campus Network Design Guide: Cisco’s comprehensive guide on campus network design, which covers various architectural models, including the Collapsed Core Network.

2. Cisco Enterprise Network Architecture: Explore Cisco’s solutions and insights into enterprise network architecture, including resources on designing scalable and resilient networks.

3. Cisco Networking Academy: Access Cisco’s Networking Academy, a resource-rich platform offering courses and materials on network design, configuration, and troubleshooting.

4. Cisco Design Zone: Cisco’s Design Zone provides practical design and deployment guides for various network scenarios, including those relevant to the Collapsed Core Network.

These links will provide readers with valuable information and insights from Cisco, a leading authority in the field of network architecture and design.

Plan Your Network Topology
Before creating SSIDs and VLANs, it is essential to plan your network topology. This involves determining the number of access points (APs) needed, the coverage area, and the location of the APs. You also need to determine the number of SSIDs and VLANs needed and the security requirements for each network. For example, you may need separate networks for guest access and employee access, each with different security policies.

Create VLANs
VLANs are virtual LANs that enable you to separate network traffic into different logical networks, each with its own security policies. VLANs are crucial in building a secure corporate WiFi network. Here are the steps to create VLANs in Aruba Wireless:

• Log in to the Aruba Wireless web interface.
• Navigate to Configuration > Advanced Services > VLANs.
• Click Add to create a new VLAN.
• Enter a name for the VLAN.
• Enter a VLAN ID, which is a unique number between 1 and 4094.
• Set the VLAN type to “Normal.”
• Set the VLAN state to “Enabled.”
• Click Apply to save the VLAN configuration.

Repeat these steps for each VLAN you need to create.

Create SSIDs
An SSID is a unique identifier that enables clients to connect to a specific wireless network. You can create multiple SSIDs for different types of users, such as employees and guests. Here are the steps to create SSIDs in Aruba Wireless:

Repeat these steps for each SSID you need to create.

Configure APs
Once you have created VLANs and SSIDs, you need to configure the APs to broadcast the SSIDs and connect clients to the appropriate VLANs. Here are the steps to configure APs in Aruba Wireless:

• Log in to the Aruba Wireless web interface.
• Navigate to Configuration > Wireless > AP Configuration.
• Select the AP you want to configure from the list.
• Click the SSIDs tab.
• Select the SSIDs you want to broadcast from the list.
• Click the VLAN tab.
• Select the VLANs you want to associate with the SSIDs.
• Click Apply to save the AP configuration.

Repeat these steps for each AP you need to configure.

Conclusion
Building a secure and reliable corporate WiFi network using Aruba Wireless involves creating VLANs and SSIDs and configuring APs to connect clients to the appropriate VLANs. Planning your network topology, determining the number of SSIDs and VLANs needed, and setting the appropriate security policies are crucial to building a robust and secure network. Aruba Wireless provides a flexible and feature-rich solution for building a corporate WiFi network that can meet the needs of any organization.

Create Guest Wireless – https://www.expertnetworkconsultant.com/configuring/configuring-guest-wireless-with-vlans/

In this article of Ingesting and Processing Streaming and IoT Data for Real-Time Analytics, we are going to explore how to get your IoT events captured in a data stream into a database of your choosing. Processing real-time IoT data streams with Azure Stream Analytics is a thing of beauty.

Scenario
Softclap Technologies, which is a company in the vehicle tracking and automation space, has completely automated its vehicle tracking processes. Their vehicles are equipped with sensors that are capable of emitting streams of data in real time. In this scenario, a Data Analyst Engineer wants to have real-time insights from the sensor data to look for patterns and take actions on them. You can use Stream Analytics Query Language (SAQL) over the sensor data to find interesting patterns from the incoming stream of data.

Let us look at the pre-requisites;

You can find that setup in a recent post connect an IoT Device to Azure IoT Hub.

With the above requirements in place, go ahead to follow the remainder steps to get Azure Stream Analytics to stream your IoT events to your choice Database.

What we are building today;

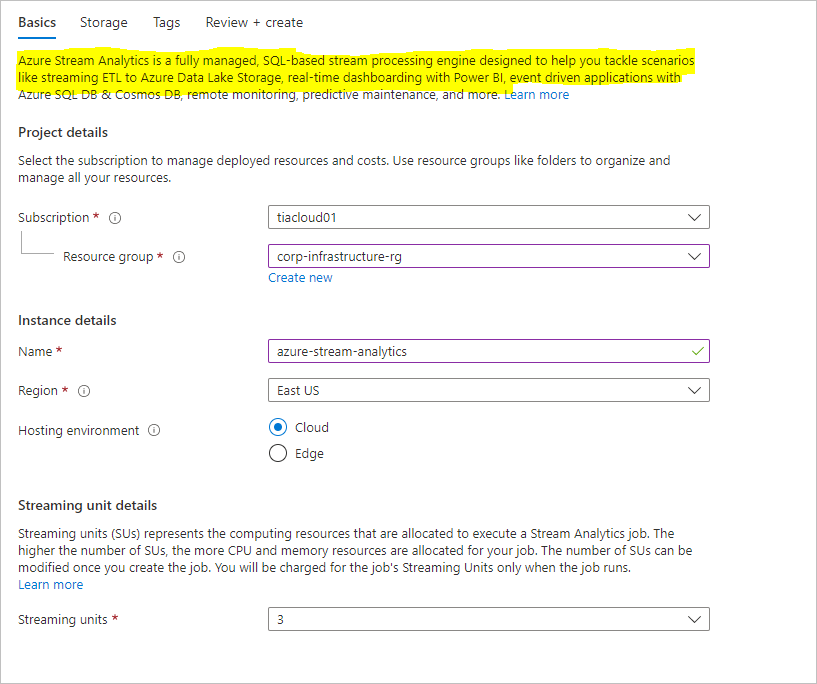

Step 1: Create Stream Analytics

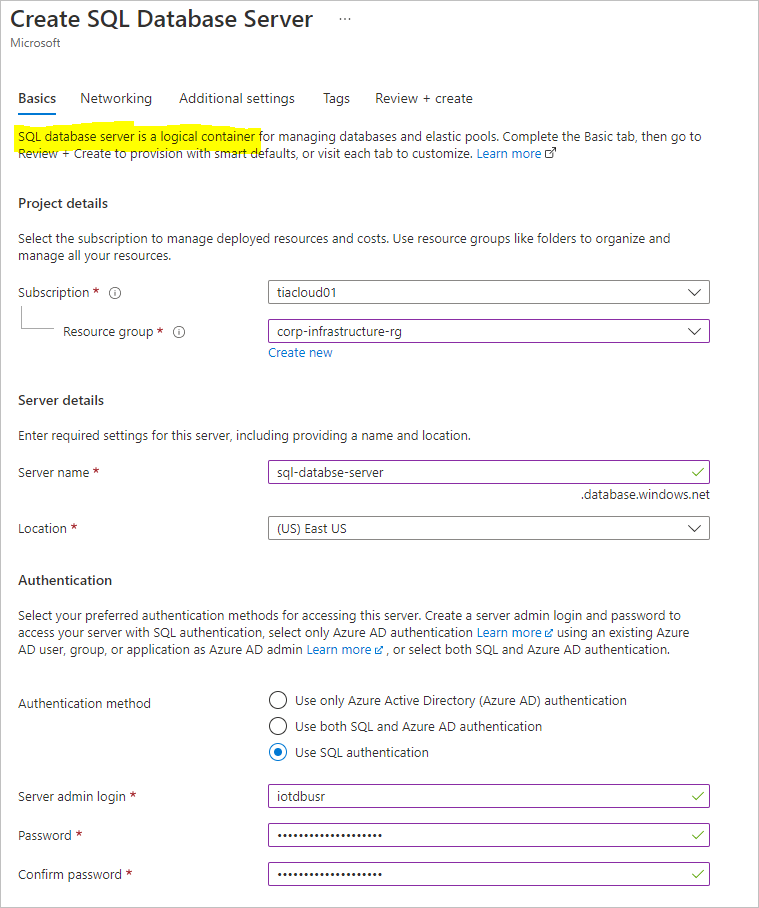

Step 2: Create SQL Database Server

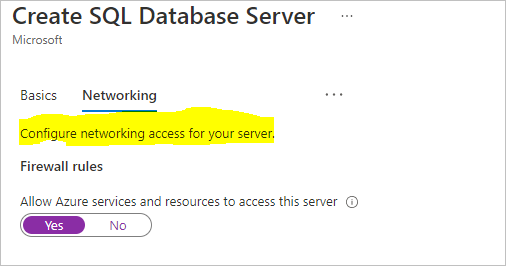

Step 3: Configure Networking to Allow Azure services and resources to access this SQL Database Server

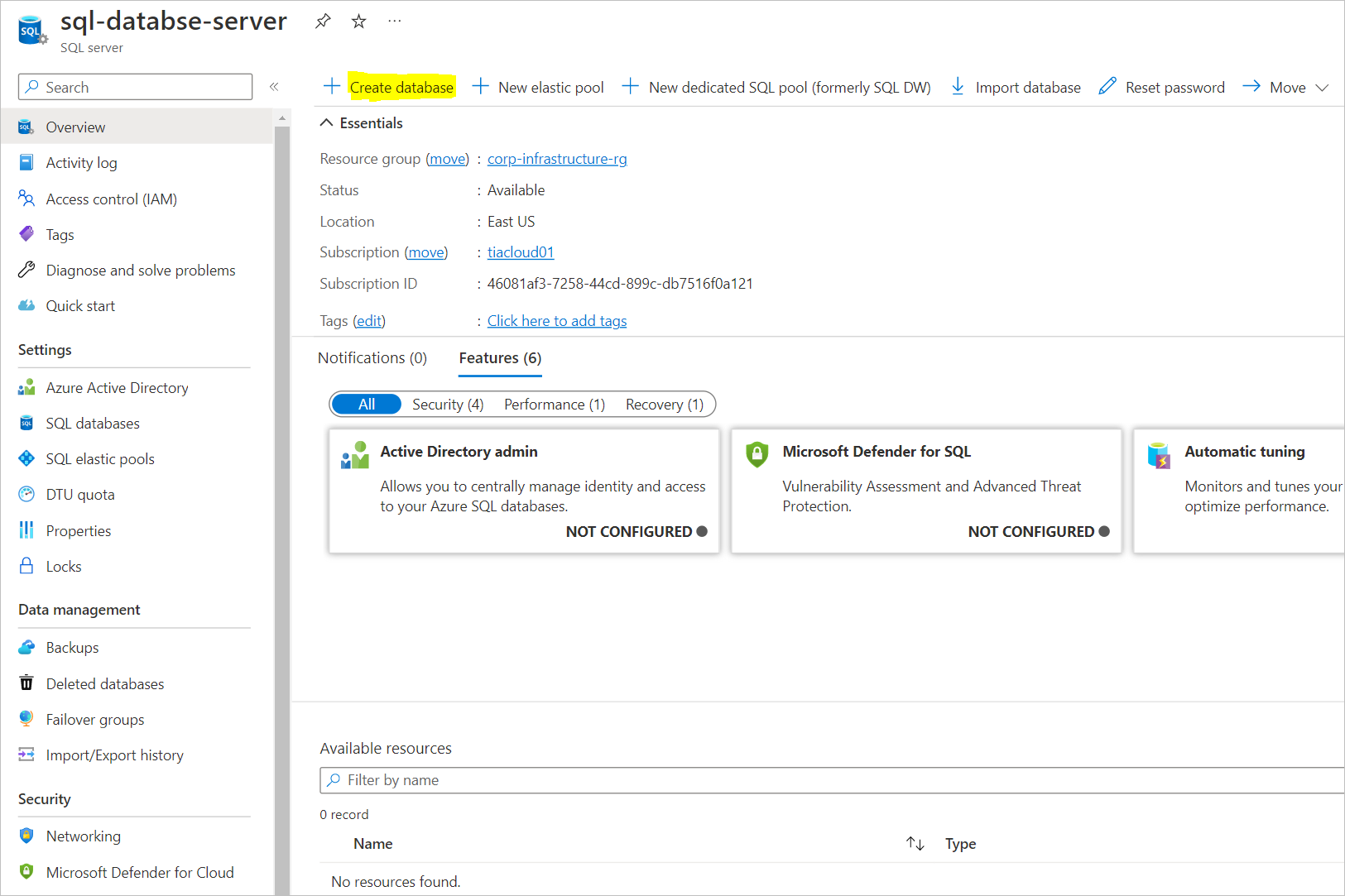

Step 4: Create a SQL database

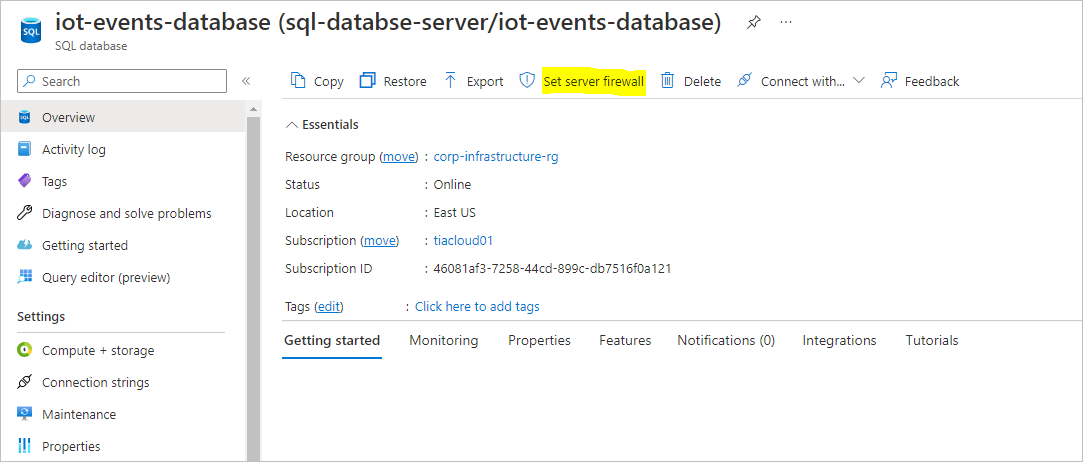

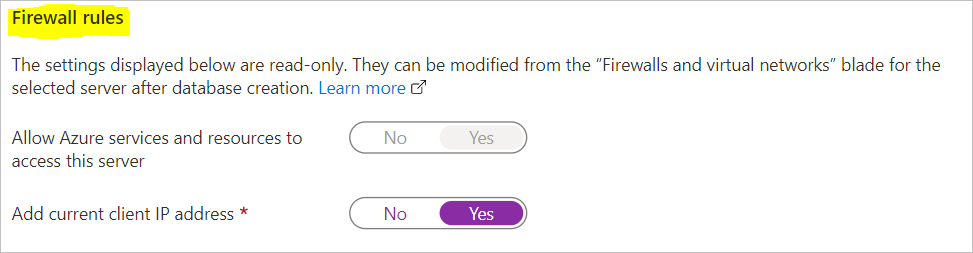

Step 5: Create Firewall Rules – this helps you access the Database

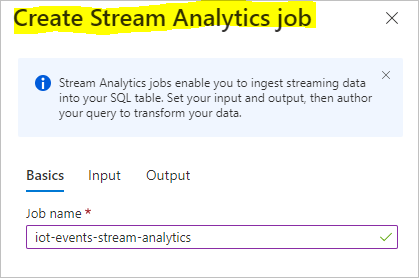

Step 6: Create Azure Stream Analytics to allow you to perform near real-time analytics on streaming data. Create a job right from your database.

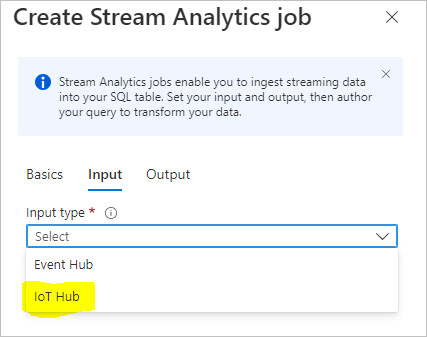

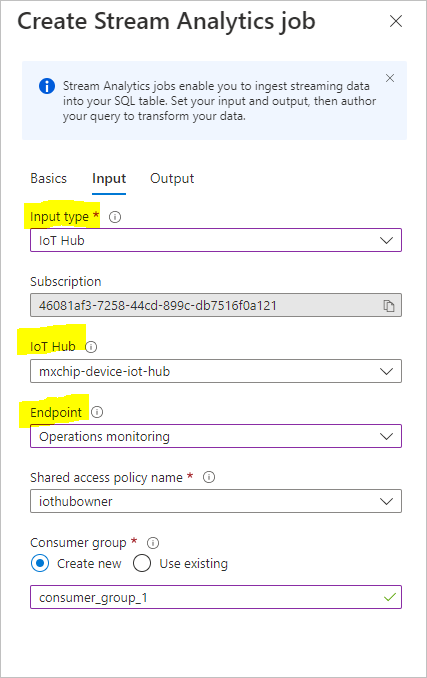

Step 7: Select IoT Hub as Input
Stream Analytics jobs enable you Ingest streaming data into your SQL table. Set your input and output, then author your query to transform your data.

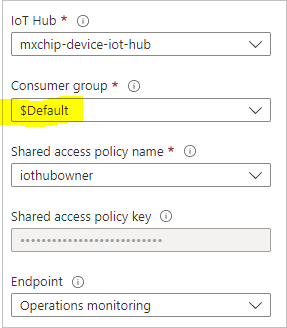

You can create a new consumer group but in this setup, I have had to use the existing consumer group $Default.

IoT Hubs limit the number of readers within one consumer group (to 5). We recommend using a separate group for each job. Leaving this field empty will use the ‘$Default’ consumer group.

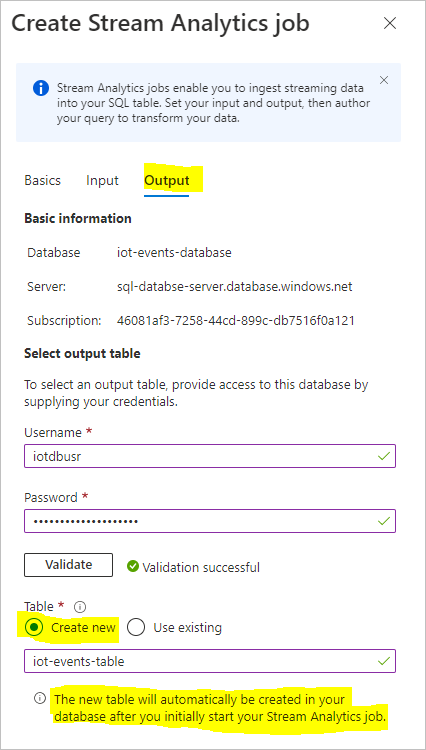

Step 8: Select Output
Since you are streaming the telemetry data to your database, select the credentials used for the output table where you can query your data from later on.

The new table will automatically be created in your database after you initially start your Stream Analytics job

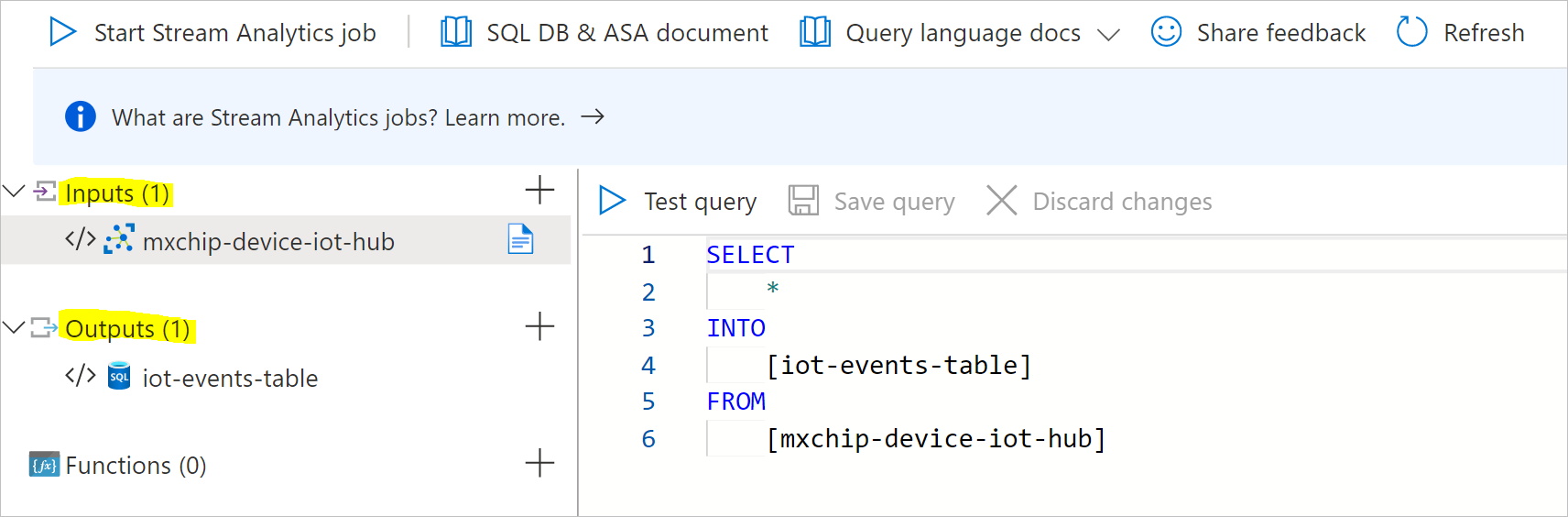

Now you have completed the configuration for Input and Output from the IoT Hub Telemetry to the Database Table.

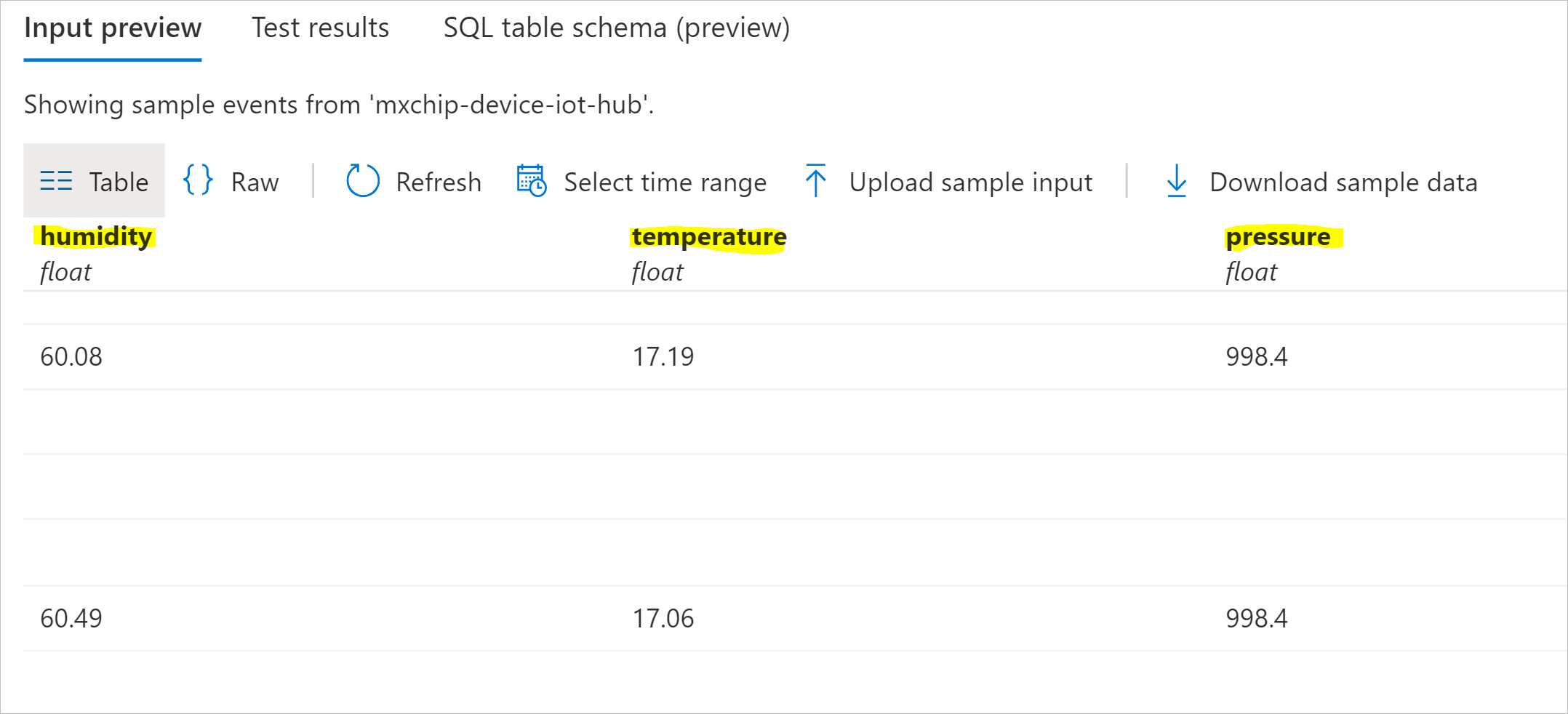

Step 9: Telemetry Stream Shows Sample Events from the IoT Device

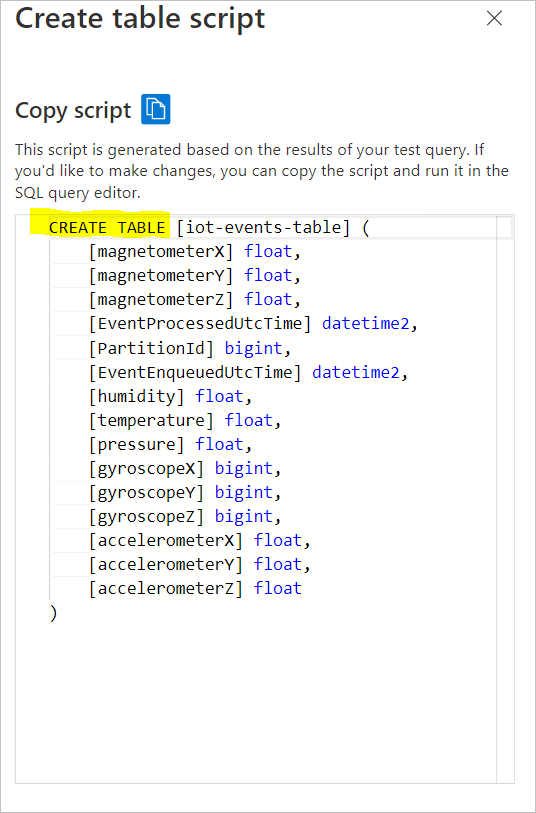

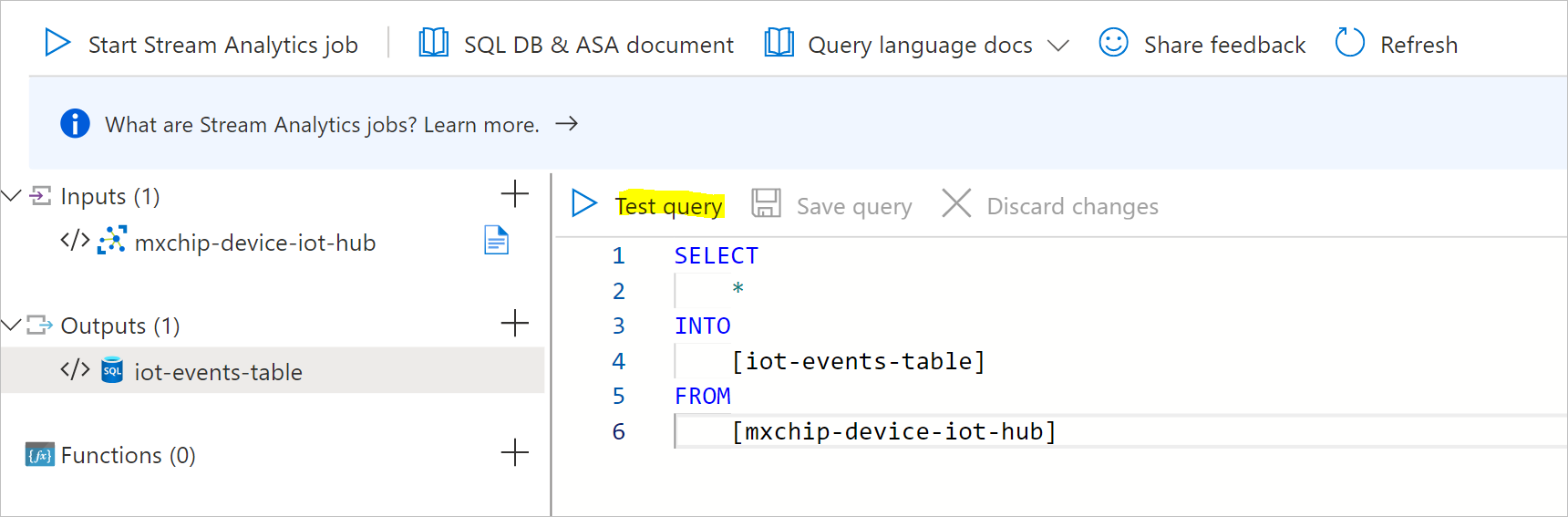

Step 10: Click Test Query

Since the objective is really to record the events in our database table, there is a need to create a table matching the schema of your test query results.

PS: Using the click to create table has not worked well for me in the past. The fields were completely out of sync. I will therefore select view create table SQL script and then connect to the database locally or from Azure Query Editor to create the tables. Let’s dive in.

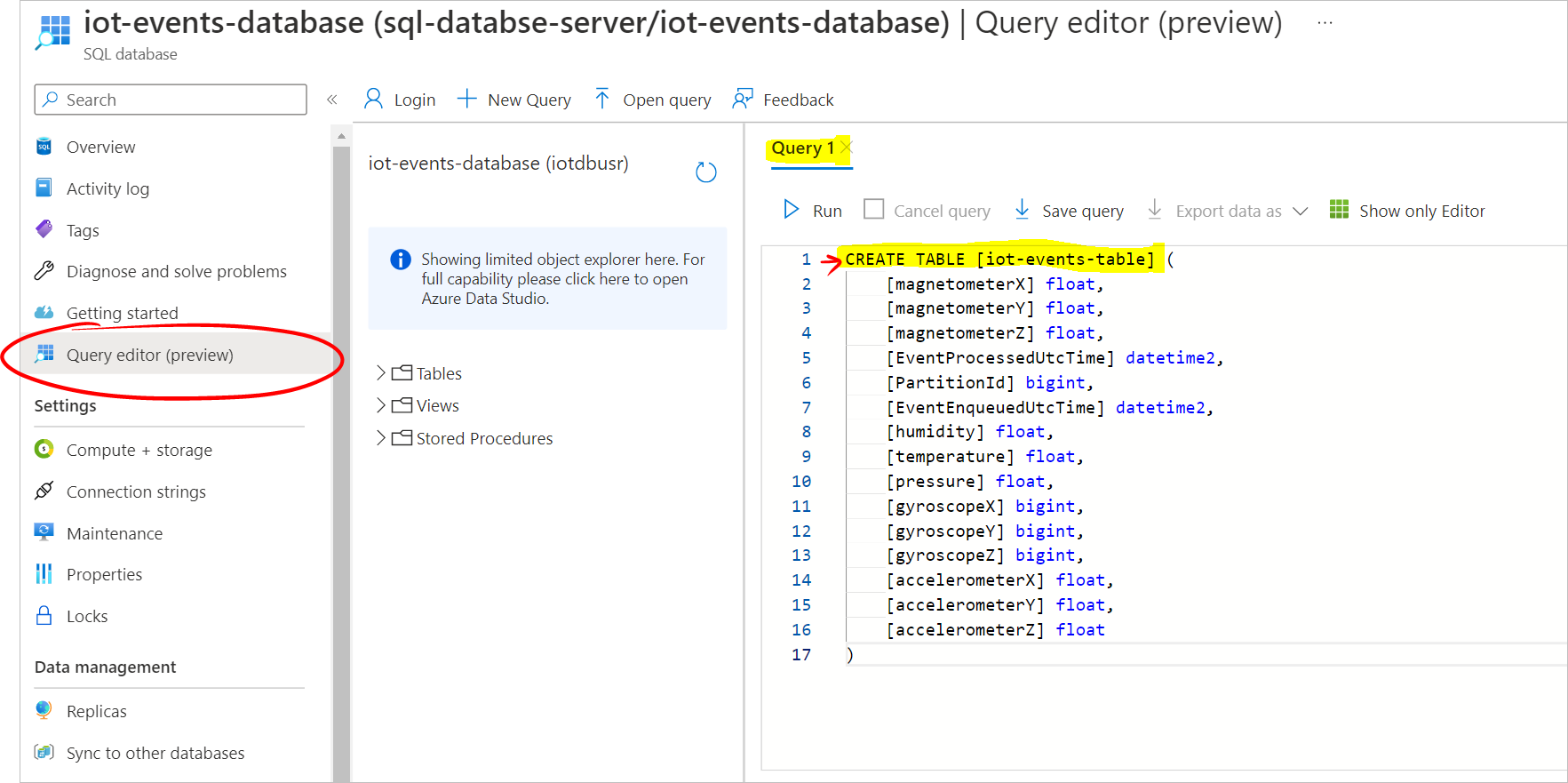

Step 11: Open SQL Database Query Editor

Now that this step has completed successfully, head back to Stream Analytics and click on Start Stream Analytics Job. Starting the stream analytics job ensured that the input iot device telemetry is captured in the database predefined table which can be queried later on.

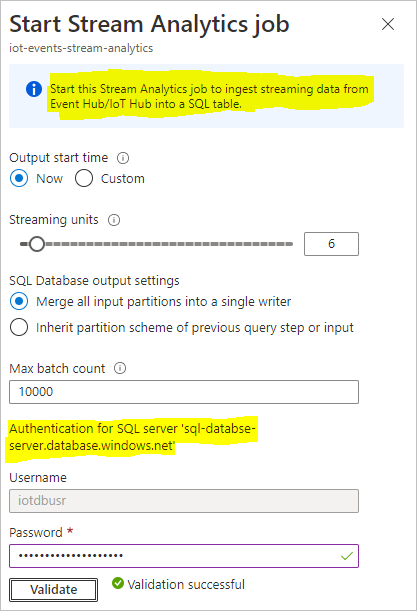

Authenticate to Database SQL Server where Output Table is stored.

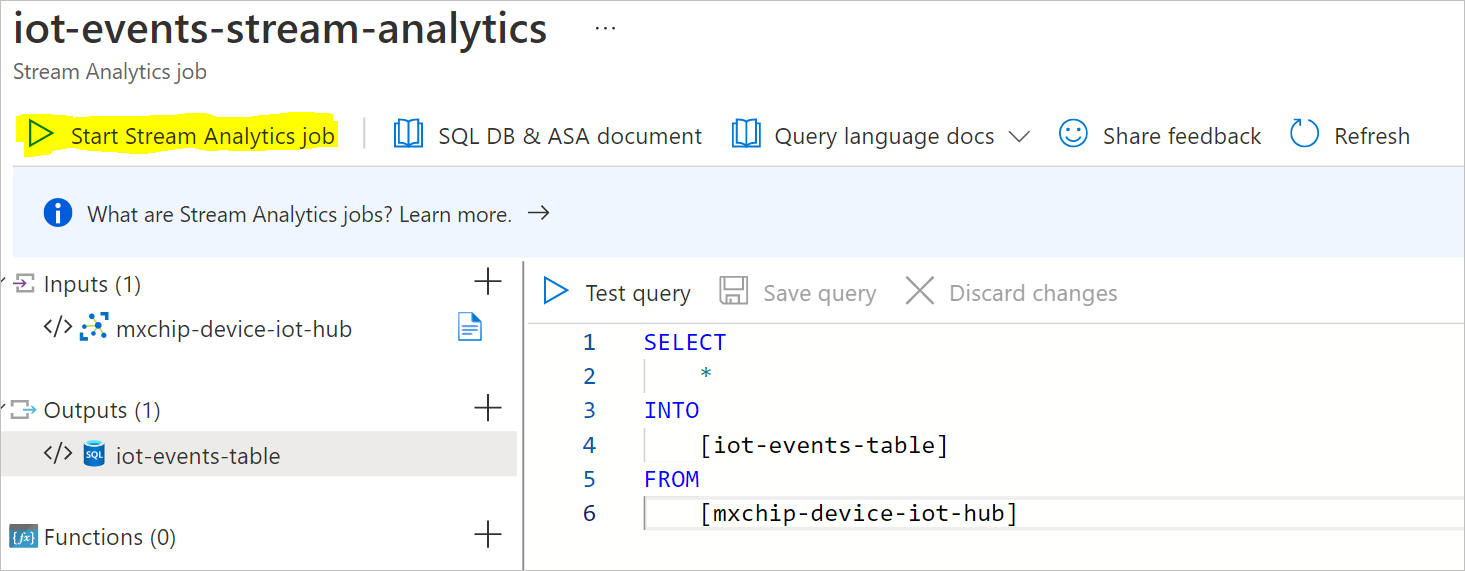

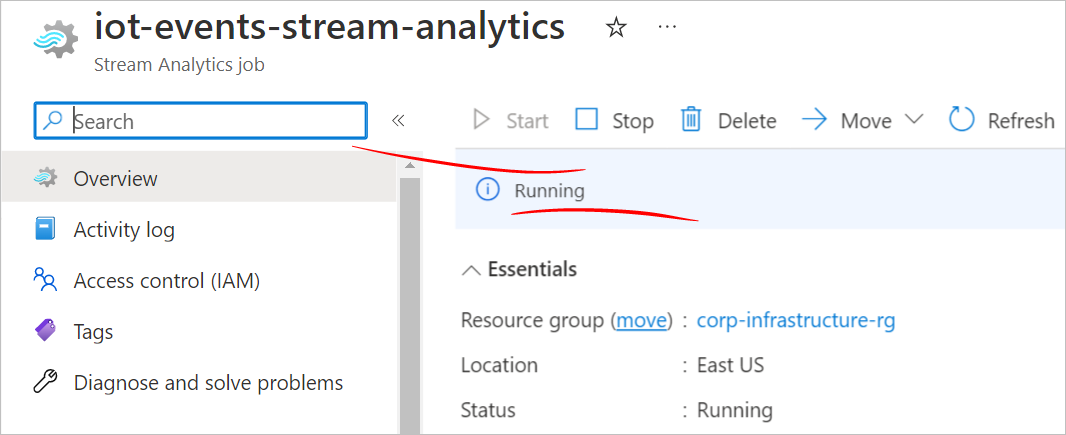

Step 12: Click Start to begin writing stream data into Database table.

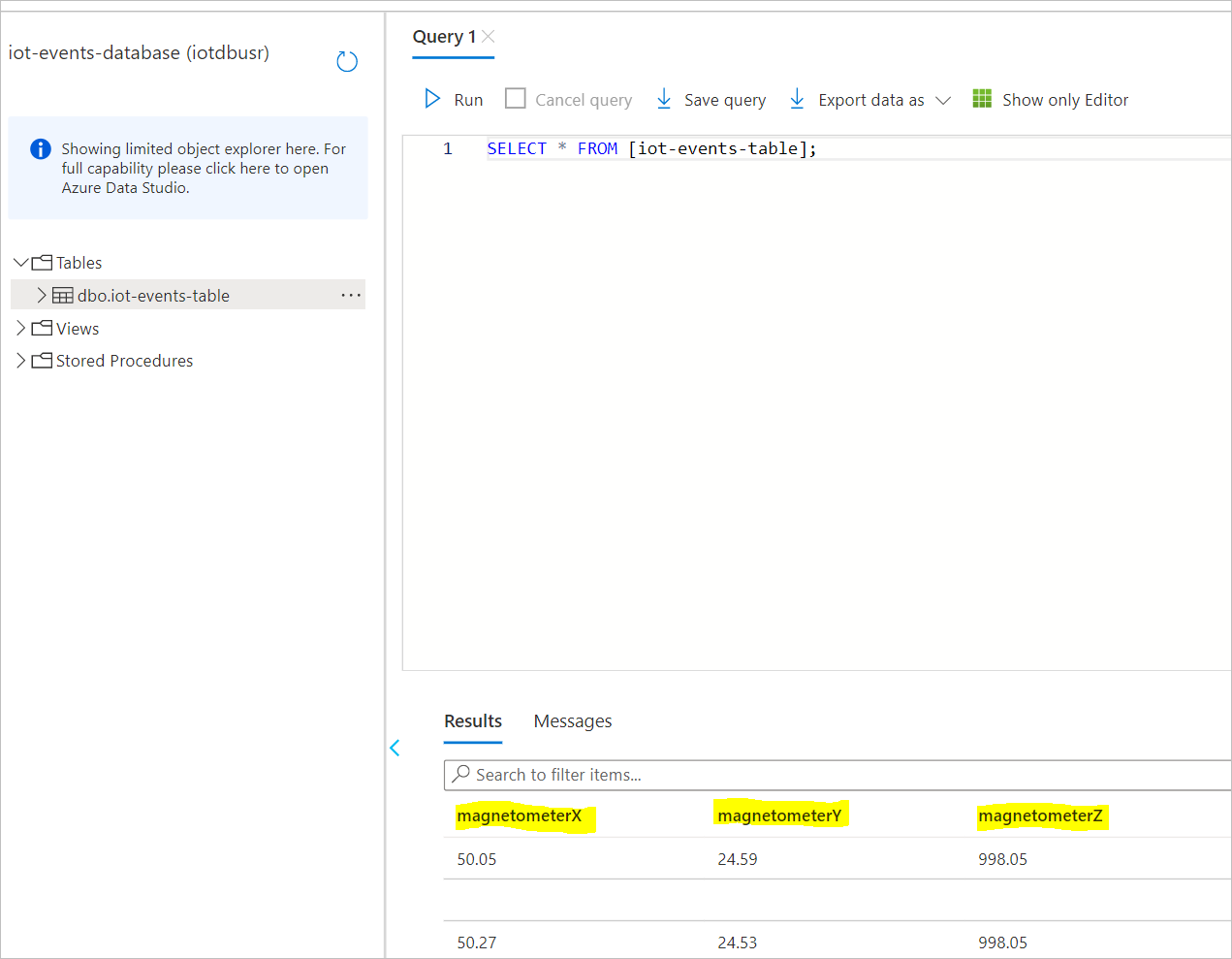

Back to the Query Editor and below are the results.

And so there we have it, a successful stream of IoT events from a remote IoT device sending live telemetry ingested in our stream analytics and captured in our database table.

Click here to learn more about other ways of ingesting data in Azure Stream Analytics.

When you hear secrets, what comes to mind is confidentiality and secrecy. In the world of Kubernetes secrets are essentially any value that you don’t want the world to know about.

The following elements, password, an API key, a connection string to a database, all fall under what a secret is. Now when comparing Secrets and ConfigMaps in Kubernetes, the main difference is the confidential data.

Both ConfigMaps and Secrets store the data the same way, with key/value pairs, but ConfigMaps are designed for plain text data, and secrets on the other hand are meant for data that must be secured and confidential to the application exclusively.

By default, Secrets are stored at rest in Key Vault, in a secure encrypted store. Secrets are only stored in the AKS cluster when a pod is running with the secret mounted as a volume in a pod. As soon as the hosting pods are removed, the secret is removed from the cluster and this is a better approach as opposed to Kubernetes secrets which gets retained after the hosting pod is removed.

RESOURCE_GROUP=corp-infrastructure-rg
KV_RESOURCE_GROUP=corp-kv-infrastructure-rg
LOCATION=eastus
AKS_CLUSTER=corpakscluster

#Create a resource group for the AKS cluster:

az group create --name $RESOURCE_GROUP --location $LOCATION

 az aks create \
   --resource-group $RESOURCE_GROUP \
   --name $AKS_CLUSTER \
   --network-plugin azure \
   --enable-managed-identity \
   --enable-addons azure-keyvault-secrets-provider \
   --generate-ssh-keys

 "identity": {
        "clientId": "1456c162-3f04-40bc-a079-f1f3f7d22b16",
        "objectId": "9f8165b6-206f-4596-932f-31e80469700f",
}

Download the cluster credentials and configure kubectl to use them:

az aks get-credentials --resource-group $RESOURCE_GROUP --name $AKS_CLUSTER

Merged "corpakscluster" as current context in /home/%user%/.kube/config

Check that the Secrets Store CSI Driver and the Azure Key Vault Provider are installed in the cluster:

$ kubectl get pods -n kube-system -l 'app in (secrets-store-csi-driver, secrets-store-provider-azure)'

When we enable the Azure Key Vault secret provider, the add-on will create a user assigned managed identity in the node managed resource group. Store its resource ID in a variable for later use

View the resource ID of the user assigned managed identity;

az aks show -g $RESOURCE_GROUP -n $AKS_CLUSTER --query addonProfiles.azureKeyvaultSecretsProvider.identity.clientId -o tsv
1456c162-3f04-40bc-a079-f1f3f7d22b16

Store the resource ID of the user assigned managed identity in a variable;

KV_IDENTITY_RESOURCE_ID=$(az aks show -g $RESOURCE_GROUP -n $AKS_CLUSTER --query addonProfiles.azureKeyvaultSecretsProvider.identity.clientId -o tsv)

Create Azure Key Vault
Create a resource group for Azure Key vault

az group create --name $KV_RESOURCE_GROUP --location $LOCATION

Create a key vault while storing its name in a variable:

KEY_VAULT_NAME="akscorpkeyvault${RANDOM}"

az keyvault create --name $KEY_VAULT_NAME --resource-group $KV_RESOURCE_GROUP --location $LOCATION

{
 "name": "akscorpkeyvault5493"
"objectId": "ebejced9-2f89-8176-a9u3-657f75eb36bb"
"tenantId": "46edb775-xy69-41z6-7be1-03e4a0997e49"
}

Create a secret and a key in the Vault for later demonstration:

az keyvault secret set --vault-name $KEY_VAULT_NAME -n FirstSecret --value StoredValueinFirstSecret

 "name": "FirstSecret",
  "tags": {
    "file-encoding": "utf-8"
  },
  "value": "StoredValueinFirstSecret"
}

Create a key in the Vault for later demonstration:

az keyvault key create --vault-name $KEY_VAULT_NAME -n FirstKey --protection software

    "n": "t6PMnN5hTR2Oicy/fuTzQgXo49EgkS7B61gJWOeQjfw8u9tO+YoRbnPgWMnDsQWE3xE/MJyt6R0w0QwHsQa28KjdzCfq6qvJSlTSyhFfU9VJIf2YkjFtSlOpoyqYXKmHC6cS3pLrWsxDdVZTpZrgcZ8ec2deowrLDnn9mL5OKljGHmEaptocVHGWGfs9VNlxNqDAhRC4IKCQSIt6pnXc+eLo6Es0J50WhqHTGdqMG5brJGSlgEVaZobeBuvyFIxEvtt33MDjjkdiXCjKoTl8IS7/LNlvLYtDTWRvazK390IUXpldICw0xAp3layR/IDZA0diLEwQzbdESkyO18osPQ==",

Grant the AKS key vault managed identity permissions to read (GET) your key vault and view its contents:

Set policy to access keys in your key vault

az keyvault set-policy -n $KEY_VAULT_NAME --key-permissions get --spn $KV_IDENTITY_RESOURCE_ID

"objectId": "ebejced9-2f89-8176-a9u3-657f75eb36bb", granted the permissions to read the object     "objectId": "9f8165b6-206f-4596-932f-31e80469700f"

 "keys": [
            "get"
          ],

Set policy to access secrets in your key vault

az keyvault set-policy -n $KEY_VAULT_NAME --secret-permissions get --spn $KV_IDENTITY_RESOURCE_ID

"objectId": "ebejced9-2f89-8176-a9u3-657f75eb36bb", granted the permissions to read the object     "objectId": "9f8165b6-206f-4596-932f-31e80469700f"

"secrets": [
            "get"
          ]

Set policy to access certs in your key vault

az keyvault set-policy -n $KEY_VAULT_NAME --certificate-permissions get --spn $KV_IDENTITY_RESOURCE_ID

 "certificates": [
            "get"
          ],

Create Kubernetes resources
Store the tenant ID in a variable, you can get the value from the Azure AD tenant overview page:
TENANT_ID=${{put your tenant ID here}}  | TENANT_ID=46edb775-xy69-41z6-7be1-03e4a0997e49

Create a SecretProviderClass by using the following YAML, using your own values for userAssignedIdentityID, keyvaultName, tenantId, and the objects to retrieve from your key vault:

cat <<EOF | kubectl apply -f -
---
apiVersion: secrets-store.csi.x-k8s.io/v1
kind: SecretProviderClass
metadata:
  name: azure-kvname-user-msi
spec:
  provider: azure
  parameters:
    usePodIdentity: "false"
    useVMManagedIdentity: "true" # true since using managed identity
    userAssignedIdentityID: 1456c162-3f04-40bc-a079-f1f3f7d22b16 #$KV_IDENTITY_RESOURCE_ID
    keyvaultName: akscorpkeyvault5493    #$KEY_VAULT_NAME
    cloudName: ""
    objects:  |
      array:
        - |
          objectName: FirstSecret        #ExampleSecret
          objectType: secret    # object types: secret, key, or cert
          objectVersion: ""     # default to latest if empty
        - |
          objectName: FirstKey        #ExampleKey
          objectType: key
          objectVersion: ""
    tenantId: 46edb775-xy69-41z6-7be1-03e4a0997e49 #$TENANT_ID
EOF

secretproviderclass.secrets-store.csi.x-k8s.io/azure-kvname-user-msi configured

At this point, you need a pod that mounts the secret and the key using the secret provider class we just created earlier above:

cat <<EOF | kubectl apply -f -
---
kind: Pod
apiVersion: v1
metadata:
  name: busybox-secrets-store-inline-user-msi
spec:
  containers:
    - name: busybox
      image: k8s.gcr.io/e2e-test-images/busybox:1.29-1
      command:
        - "/bin/sleep"
        - "10000"
      volumeMounts:
      - name: secrets-store01-inline
        mountPath: "/mnt/secrets-store"
        readOnly: true
  volumes:
    - name: secrets-store01-inline
      csi:
        driver: secrets-store.csi.k8s.io
        readOnly: true
        volumeAttributes:
          secretProviderClass: "azure-kvname-user-msi"
EOF


pod/busybox-secrets-store-inline-user-msi created

Validate secrets were mounted from the pod created earlier:

kubectl exec busybox-secrets-store-inline-user-msi -- ls /mnt/secrets-store/

Read the content(s) of the secret and key:

kubectl exec busybox-secrets-store-inline-user-msi -- cat /mnt/secrets-store/FirstSecret

kubectl exec busybox-secrets-store-inline-user-msi -- cat /mnt/secrets-store/FirstKey

The power of clustering goes a long way to enforce technical knowledge and hands-on application of technologies, it is essential for any serious engineer to build full scale labs covering best known architectures. Learning Kubernetes is best when you are able to build a production grade cluster replica. Minikube has always been helpful but the true benefit of a real world architecture does not come with Minikubing. This is where KIND comes in, bringing the power of real hands on without dedicating much hardware and resources as you would in using virtual machines to create a Kubernetes cluster.

Install Prerequisites

apt-get install curl

Install Docker

sudo apt-get update


curl -fsSL https://get.docker.com -o get-docker.sh
sh get-docker.sh

Give user permissions to query Docker

sudo usermod -aG docker $USER
Restart your hosts (Nodes) for the permissions to take effect.

Install Kind on Linux

curl -Lo ./kind https://kind.sigs.k8s.io/dl/v0.11.1/kind-linux-amd64
chmod +x ./kind
mv ./kind /usr/local/bin

Install Kubectl

We’ll need kubectl to work with Kubernetes cluster, in case its not already installed. For this, we can use below commands:

curl -LO "https://dl.k8s.io/release/$(curl -L -s https://dl.k8s.io/release/stable.txt)/bin/linux/amd64/kubectl"

Set Permissions

chmod +x ./kubectl

Move kubectl to local

sudo mv ./kubectl /usr/local/bin/kubectl

Create Multi-Node Clusters – 1 Master and 2 Worker Nodes

Create Cluster Manifest File – cluster-config-yaml.yaml

# A sample multi-node cluster config file
# A three node (two workers, one controller) cluster config
# To add more worker nodes, add another role: worker to the list
kind: Cluster
apiVersion: kind.x-k8s.io/v1alpha4
name:
nodes:
- role: control-plane
  kubeadmConfigPatches:
  - |
    kind: InitConfiguration
    nodeRegistration:
      kubeletExtraArgs:
        node-labels: "ingress-ready=true"
  extraPortMappings:
  - containerPort: 80
    hostPort: 80
    protocol: TCP
  - containerPort: 443
    hostPort: 443
    protocol: TCP
- role: worker
- role: worker


root@cluster-vm:/home/cluster# kind create cluster --name=azvmms-node --config=single-cluster.yaml
Creating cluster "azvmms-node" ...
✓ Ensuring node image (kindest/node:v1.21.1) 🖼
✓ Preparing nodes 📦 📦
✓ Writing configuration 📜
✓ Starting control-plane 🕹
✓ Installing CNI 🔌
✓ Installing StorageClass 💾
✓ Joining worker nodes 🚜
Set kubectl context to "kind-azvmms-node"
You can now use your cluster with:

kubectl cluster-info --context kind-azvmms-node


Creates the Control Plane

- role: control-plane

Creates the 2 Worker Nodes

- role: worker
- role: worker

Create Cluster

kind create cluster --config=<cluster-config-yaml.yaml>

Check Pods

$ kubectl get pods -ns -A -o wide
NAMESPACE            NAME                                            READY   STATUS    RESTARTS   AGE   IP           NODE                    NOMINATED NODE   READINESS GATES
kube-system          coredns-558bd4d5db-2gszr                        1/1     Running   0          91m   10.244.0.3   spacers-control-plane
kube-system          coredns-558bd4d5db-46rkp                        1/1     Running   0          91m   10.244.0.2   spacers-control-plane
kube-system          etcd-spacers-control-plane                      1/1     Running   0          92m   172.18.0.4   spacers-control-plane
kube-system          kindnet-9jmwv                                   1/1     Running   0          91m   172.18.0.2   spacers-worker2
kube-system          kindnet-c2jrx                                   1/1     Running   0          91m   172.18.0.4   spacers-control-plane
kube-system          kindnet-hlhmx                                   1/1     Running   0          91m   172.18.0.3   spacers-worker
kube-system          kube-apiserver-spacers-control-plane            1/1     Running   0          92m   172.18.0.4   spacers-control-plane
kube-system          kube-controller-manager-spacers-control-plane   1/1     Running   0          91m   172.18.0.4   spacers-control-plane
kube-system          kube-proxy-97q94                                1/1     Running   0          91m   172.18.0.3   spacers-worker
kube-system          kube-proxy-t4ltb                                1/1     Running   0          91m   172.18.0.4   spacers-control-plane
kube-system          kube-proxy-xrd5l                                1/1     Running   0          91m   172.18.0.2   spacers-worker2
kube-system          kube-scheduler-spacers-control-plane            1/1     Running   0          91m   172.18.0.4   spacers-control-plane
local-path-storage   local-path-provisioner-547f784dff-5dgp6         1/1     Running   0          91m   10.244.0.4   spacers-control-plane

Deploy a Sample App

kubectl apply -n portainer -f https://raw.githubusercontent.com/portainer/k8s/master/deploy/manifests/portainer/portainer.yaml

Test Access

https://localhost:30779/
kubectl run my-nginx --image=nginx --replicas=2 --port=8080

Delete Cluster
kind delete clusters <cluster-name>

If you have struggled to remote desktop to a virtual machine in Azure, then it is likely to be a Windows Server or Desktop machine.

Azure uses the AzureAADLogin extension to enable the capabilities of user logins with their domain credentials.

It doesn’t always work and in my experience, I haven’t had much success with it up until now when I have finally figured out how to successfully rdp into a azure ad-joined vm in Azure.

Below are the steps needed to successfully achieve our objective.

Step 1: Create a Virtual Machine

az group create --name your-resourcegroup-name --location westus

az vm create \
    --resource-group your-resourcegroup-name \
    --name your-vm-name \
    --image Win2019Datacenter \
    --assign-identity \
    --admin-username localadminuser \
    --admin-password yourpassword

Although this extension can be installed at the time of creation of the virtual machine, using the following bash commandlet would still install the extension for you.

Step 2: Install Required Extensions

az vm extension set \
    --publisher Microsoft.Azure.ActiveDirectory \
    --name AADLoginForWindows \
    --resource-group your-resourcegroup-name \
    --vm-name your-vm-name

This article is intended to fix a peculiar problem encountered in remote desktop connections to Windows Server Virtual Machines on Azure. With the local administrator account, I could remote desktop to the virtual machine but not with domain accounts.

Figure 1.0 – The Logon Attempt Failed.

Install required extensions for the virtual machine
Install WindowsAADLogin Extension with RBAC

Enable Remote Desktop Access | 3389 on the NSG
This can be done at the creation of the virtual machine.

Now that you’ve created the VM and enabled the appropriate extension(s), you need to configure an Azure RBAC policy to determine who can log in to the VM. Two Azure roles are used to authorize VM login.

Add either of these IAM Roles to RBAC User

Users who have this role assigned can log in to an Azure virtual machine with regular user privileges.

Users who have this role assigned can log in to an Azure virtual machine with administrator privileges.

$username=$(az account show --query user.name --output tsv)
$rg=$(az group show --resource-group your-resourcegroup-name --query id -o tsv)

az role assignment create \
    --role "Virtual Machine Administrator Login" \
    --assignee $username \
    --scope $rg

Mitigation | Steps I followed to fix this issue.

Windows Key + R

Type sysdm.cpl a

Uncheck the Allow connections only from computers running Remote Desktop with Network Level Authentication (recommended) box.

Edit the RDP file
Add the following lines to the RDP Connection file with a text editor of your choosing. Save the file ensuring its not formatted as any other file type except with the extension *.rdp

authentication level:i:2
enablecredsspsupport:i:0

Add a space character before the AzureAD domain.

#optional line – make a note of the full-stop character before the \azuread\

full address:s:10.X.Y.Z:3389
prompt for credentials:i:1
administrative session:i:1


authentication level:i:2
enablecredsspsupport:i:0

username:s:.\azuread\username@domain.com

.\azuread\username@domain.ext

If you are not interested in the optional line configuration, then you will now need to enter your credentials once connection is initiated as thus;

username: azuread\user@domain.com
password: **************

make a note of the space character before the AzureAD domain

Initiate Connection to Virtual Machine

If you have followed the above steps diligently, then the attempt to login failure should no longer exist.

Below is a helpful community article addressing this challenge.

If you want to learn more of how to troubleshoot virtual machines, then please follow this useful resource from Microsoft.

Configure Your Environment

Configure Deployment Parts

Create your vars.tf file

#Variable file used to store details of repetitive references
variable "location" {
  description = "availability zone that is a string type variable"
  type    = string
  default = "eastus2"
}

variable "prefix" {
  type    = string
  default = "emc-eus2-corporate"
}

Create your providers.tf file

#Variable file used to store details of repetitive references
variable "location" {
  type    = string
  default = "eastus2"
}

variable "prefix" {
  type    = string
  default = "emc-eus2-corporate"
}

In the next steps, we create the main.tf file and add the following cmdlets.

Create a virtual network

#Create virtual network and subnets
resource "azurerm_virtual_network" "emc-eus2-corporate-network-vnet" {
  name                = "emc-eus2-corporate-network-vnet"
  location            = azurerm_resource_group.emc-eus2-corporate-resources-rg.location
  resource_group_name = azurerm_resource_group.emc-eus2-corporate-resources-rg.name
  address_space       = ["172.20.0.0/16"]

  tags = {
    environment = "Production"
  }
}

Create a subnet

#Create subnet - presentation tier
resource "azurerm_subnet" "presentation-subnet" {
  name                 = "presentation-subnet"
  resource_group_name  = azurerm_resource_group.emc-eus2-corporate-resources-rg.name
  virtual_network_name = azurerm_virtual_network.emc-eus2-corporate-network-vnet.name
  address_prefixes     = ["172.20.1.0/24"]
}

#Create subnet - data access tier
resource "azurerm_subnet" "data-access-subnet" {
  name                 = "data-access-subnet"
  resource_group_name  = azurerm_resource_group.emc-eus2-corporate-resources-rg.name
  virtual_network_name = azurerm_virtual_network.emc-eus2-corporate-network-vnet.name
  address_prefixes     = ["172.20.2.0/24"]
}

Create a public IP address

#Create Public IP Address
resource "azurerm_public_ip" "emc-eus2-corporate-nic-01-pip" {
  name                = "emc-eus2-corporate-nic-01-pip"
  location            = azurerm_resource_group.emc-eus2-corporate-resources-rg.location
  resource_group_name = azurerm_resource_group.emc-eus2-corporate-resources-rg.name
  allocation_method   = "Dynamic"
}

Create a network security group and SSH inbound rule

# Create Network Security Group and rule
resource "azurerm_network_security_group" "emc-eus2-corporate-nsg" {
  name                = "emc-eus2-corporate-nsg"
  location            = azurerm_resource_group.emc-eus2-corporate-resources-rg.location
  resource_group_name = azurerm_resource_group.emc-eus2-corporate-resources-rg.name

  security_rule {
    name                       = "SSH"
    priority                   = 1001
    direction                  = "Inbound"
    access                     = "Allow"
    protocol                   = "Tcp"
    source_port_range          = "*"
    destination_port_range     = "22"
    source_address_prefix      = "*"
    destination_address_prefix = "*"
  }
}

Create a virtual network interface card

# Create network interface
resource "azurerm_network_interface" "corporate-webserver-vm-01-nic" {
  name                = "corporate-webserver-vm-01-nic"
  location            = azurerm_resource_group.emc-eus2-corporate-resources-rg.location
  resource_group_name = azurerm_resource_group.emc-eus2-corporate-resources-rg.name

  ip_configuration {
    name                          = "corporate-webserver-vm-01-nic-ip"
    subnet_id                     = azurerm_subnet.presentation-subnet.id
    private_ip_address_allocation = "Dynamic"
    public_ip_address_id          = azurerm_public_ip.corporate-webserver-vm-01-ip.id
  }
}

Connect the network security group to the network interface

# Connect the security group to the network interface
resource "azurerm_network_interface_security_group_association" "corporate-webserver-vm-01-nsg-link" {
  network_interface_id      = azurerm_network_interface.corporate-webserver-vm-01-nic.id
  network_security_group_id = azurerm_network_security_group.emc-eus2-corporate-nsg.id
}

Create a storage account for boot diagnostics

# Generate random text for a unique storage account name
resource "random_id" "randomId" {
  keepers = {
    # Generate a new ID only when a new resource group is defined
    resource_group = azurerm_resource_group.emc-eus2-corporate-resources-rg.name
  }
  byte_length = 8
}

Create a storage account for boot diagnostics

# Create storage account for boot diagnostics
resource "azurerm_storage_account" "corpwebservervm01storage" {
  name                     = "diag${random_id.randomId.hex}"
  location                 = azurerm_resource_group.emc-eus2-corporate-resources-rg.location
  resource_group_name      = azurerm_resource_group.emc-eus2-corporate-resources-rg.name
  account_tier             = "Standard"
  account_replication_type = "LRS"
}

Create SSH Key

# Create (and display) an SSH key
resource "tls_private_key" "linuxsrvuserprivkey" {
  algorithm = "RSA"
  rsa_bits  = 4096
}

Create a virtual machine

# Create virtual machine
resource "azurerm_linux_virtual_machine" "emc-eus2-corporate-webserver-vm-01" {
  name                  = "emc-eus2-corporate-webserver-vm-01"
  location              = azurerm_resource_group.emc-eus2-corporate-resources-rg.location
  resource_group_name   = azurerm_resource_group.emc-eus2-corporate-resources-rg.name
  network_interface_ids = [azurerm_network_interface.corporate-webserver-vm-01-nic.id]
  size                  = "Standard_DC1ds_v3"

  os_disk {
    name                 = "corpwebservervm01disk"
    caching              = "ReadWrite"
    storage_account_type = "Premium_LRS"
  }

  source_image_reference {
    publisher = "Canonical"
    offer     = "0001-com-ubuntu-server-focal"
    sku       = "20_04-lts-gen2"
    version   = "latest"
  }

  computer_name                   = "corporate-webserver-vm-01"
  admin_username                  = "linuxsrvuser"
  disable_password_authentication = true

  admin_ssh_key {
    username   = "linuxsrvuser"
    public_key = tls_private_key.linuxsrvuserprivkey.public_key_openssh
  }
}

Terraform Plan

The terraform plan command evaluates a Terraform configuration to determine the desired state of all the resources it declares, then compares that desired state to the real infrastructure objects being managed with the current working directory and workspace. It uses state data to determine which real objects correspond to which declared resources, and checks the current state of each resource using the relevant infrastructure provider’s API.

terraform plan

Terraform Apply

The terraform apply command performs a plan just like terraform plan does, but then actually carries out the planned changes to each resource using the relevant infrastructure provider’s API. It asks for confirmation from the user before making any changes, unless it was explicitly told to skip approval.

terraform apply

Command to find an image based on the SKU.

samuel@Azure:~$ az vm image list -s "2019-Datacenter" --output table
You are viewing an offline list of images, use --all to retrieve an up-to-date list
Offer          Publisher               Sku              Urn                                                          UrnAlias           Version
-------------  ----------------------  ---------------  -----------------------------------------------------------  -----------------  ---------
WindowsServer  MicrosoftWindowsServer  2019-Datacenter  MicrosoftWindowsServer:WindowsServer:2019-Datacenter:latest  Win2019Datacenter  latest
samuel@Azure:~$

samuel@Azure:~$ az vm image list -s "18.04-LTS" --output table
You are viewing an offline list of images, use --all to retrieve an up-to-date list
Offer         Publisher    Sku        Urn                                      UrnAlias    Version
------------  -----------  ---------  ---------------------------------------  ----------  ---------
UbuntuServer  Canonical    18.04-LTS  Canonical:UbuntuServer:18.04-LTS:latest  UbuntuLTS   latest

Command to find an image based on the Publisher.

samuel@Azure:~$ az vm image list -p "Microsoft" --output table
You are viewing an offline list of images, use --all to retrieve an up-to-date list
Offer          Publisher               Sku                                 Urn                                                                             UrnAlias                 Version
-------------  ----------------------  ----------------------------------  ------------------------------------------------------------------------------  -----------------------  ---------
WindowsServer  MicrosoftWindowsServer  2022-Datacenter                     MicrosoftWindowsServer:WindowsServer:2022-Datacenter:latest                     Win2022Datacenter        latest
WindowsServer  MicrosoftWindowsServer  2022-datacenter-azure-edition-core  MicrosoftWindowsServer:WindowsServer:2022-datacenter-azure-edition-core:latest  Win2022AzureEditionCore  latest
WindowsServer  MicrosoftWindowsServer  2019-Datacenter                     MicrosoftWindowsServer:WindowsServer:2019-Datacenter:latest                     Win2019Datacenter        latest

samuel@Azure:~$ az vm image list -p "Canonical" --output table
You are viewing an offline list of images, use --all to retrieve an up-to-date list
Offer         Publisher    Sku        Urn                                      UrnAlias    Version
------------  -----------  ---------  ---------------------------------------  ----------  ---------
UbuntuServer  Canonical    18.04-LTS  Canonical:UbuntuServer:18.04-LTS:latest  UbuntuLTS   latest

At this point, the required pieces to build a Linux Virtual Machine on Azure is complete. It’s time to test your code.

You can learn more from Hashicorp by visiting the following link.
This article was helpful in troubleshooting issues with the Ubuntu SKU.

In this step by step guide to Create and use an SSH public-private key pair for Linux VMs in Azure, I show you how to implement these secured practices in a heart-beat using your favourite PuTTY software.

What you need to do first;

1. Download Putty
2. Create Virtual Machine
3. Generate Private Key
4. Load Private Key in PuTTY
5. Save Key as PuTTY’s own format (.pkk)
6. Add Private Key to Putty

On Azure

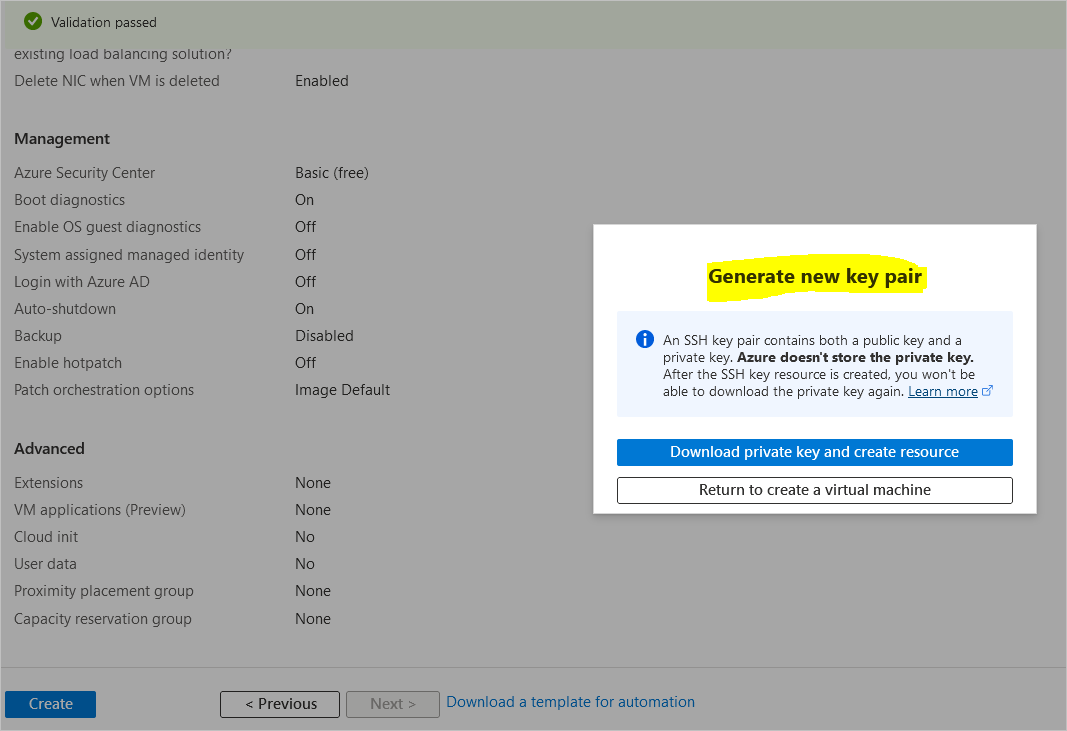

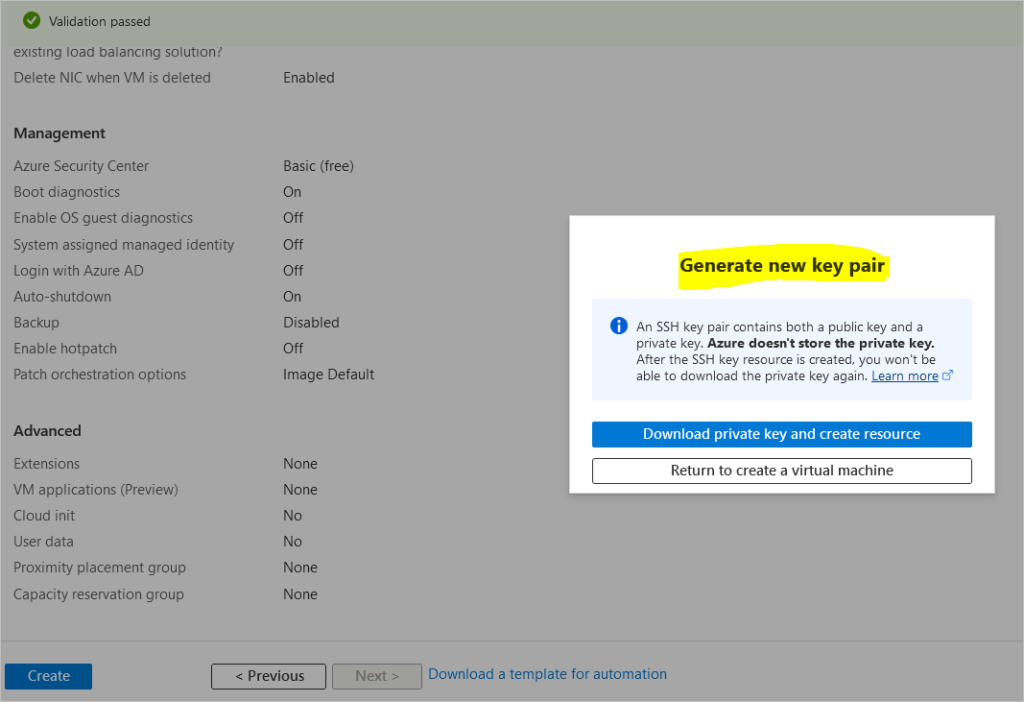

Generate new key pair

An SSH key pair contains both a public key and a private key. Azure doesn’t store the private key. After the SSH key resource is created, you won’t be able to download the private key again

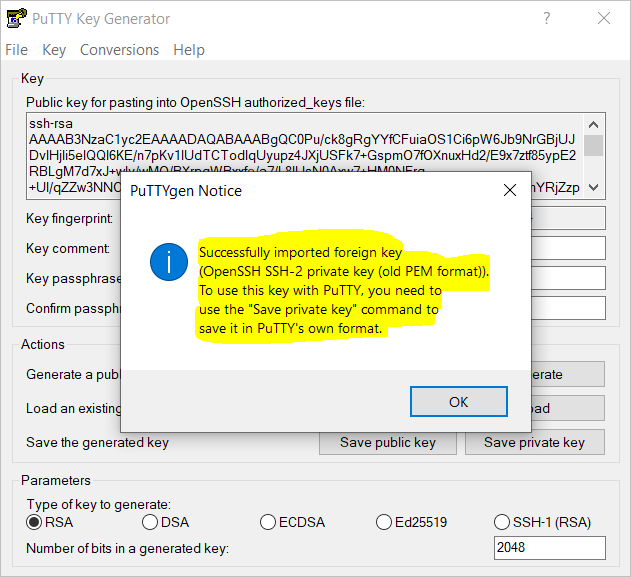

Save Private Key to save it in PuTTY’s own format

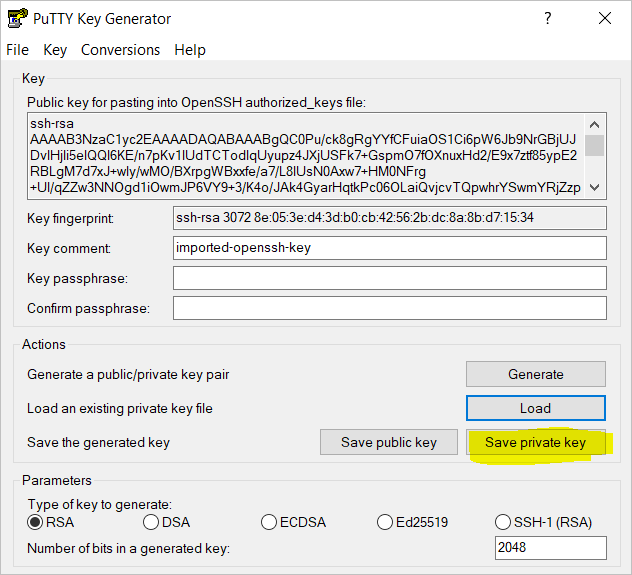

click save private key to save it in PuTTY’s own format

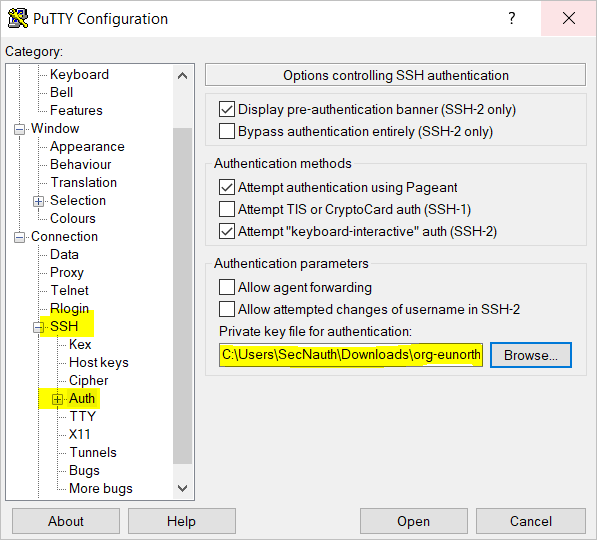

Add Key to PuTTY

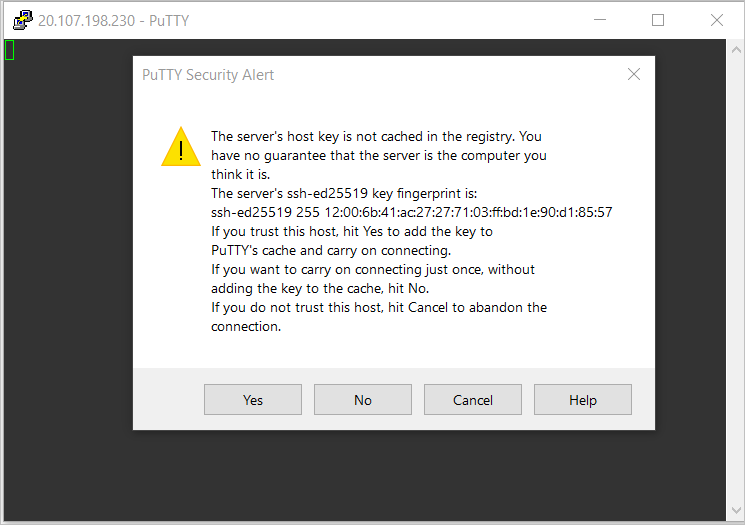

Connect to VM with SSH using Putty

login as: emcrsrvusr
Authenticating with public key "imported-openssh-key"
Welcome to Ubuntu 20.04.4 LTS (GNU/Linux 5.13.0-1022-azure x86_64)

 * Documentation:  https://help.ubuntu.com
 * Management:     https://landscape.canonical.com
 * Support:        https://ubuntu.com/advantage

  System information as of Wed May  4 08:59:32 UTC 2022

  System load:  0.08              Processes:             119
  Usage of /:   4.9% of 28.90GB   Users logged in:       0
  Memory usage: 3%                IPv4 address for eth0: 172.16.10.4
  Swap usage:   0%

1 update can be applied immediately.
To see these additional updates run: apt list --upgradable


The list of available updates is more than a week old.
To check for new updates run: sudo apt update


The programs included with the Ubuntu system are free software;
the exact distribution terms for each program are described in the
individual files in /usr/share/doc/*/copyright.

Ubuntu comes with ABSOLUTELY NO WARRANTY, to the extent permitted by
applicable law.

To run a command as administrator (user "root"), use "sudo ".
See "man sudo_root" for details.

emcrsrvusr@org-eunorth-production-nva-vm01:~$
